Zio - async I/O framework

Showcase
, ,
121

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

122

Dusty automatically spawns tasks for each connection, you don’t need to do that yourself. See this minimal example:

The default runtime config, as shown in the example, will use one OS thread total, but one coroutine per active connection. If you have slow handlers and have 100k active requests, it will run 100k coroutines.

For dynamic routes, I’ve not considered it, but I don’t see it as super important, you can always achieve this yourself using wildcard matches in the router and the handling the sub-routing yourself.

1 Like
123

Perhaps a silly question, but since this thread has gained some talk about memory usage/active requests, I was curious, is there way to see how the dusty application is doing at runtime? E.g., to know if you’re getting saturated by requests? It doesn’t have to respond to that of course, just be able to indicate it in some fashion. That way, people could know to spin up more nodes behind a load balancer. If this isn’t a foolish question, my only thoughts were if the internal logic logs something or if it exposes a socket over which a status query can be sent.

1 Like
124

Not at the moment, both dusty and zio need to expose some metrics.

For dusty, it’s mostly informative, how many requests are we processing, what are the status codes, duration histogram, etc.

For zio, it’s more interesting, it can do things like task latency between it’s schedule time and when it actually runs. If that is too high, you might need to run more threads, for example. There are many metrics that can be useful that could be exported from zio.

I kind of hate adding dependencies to these projects, because Zig doesn’t handle transitive dependencies too well, but ideally I’d like to use GitHub - karlseguin/metrics.zig: Prometheus metrics for library and application developers · GitHub

Anyway, thanks for the reminder, this is actually a very important thing that I forgot about and should definitely be done soon.

125

A bit of a noob question. Can you reasonably wrap other fd:s like the inotify read interface in std.Io.File and what are the limitations if you do?

Here in my toy project: zio-flate-server/src/Cache.zig at e0098c9136369d9661ff04675e8cb49b07e4e97b · gustafla/zio-flate-server · GitHub

I want to have a file watching worker that wakes up when a cached file changes on the file system.

So using an Io.concurrent, I call basically this:

const file: Io.File = .{
    .handle = self.inotify_fd,
    .flags = .{ .nonblocking = false },
};
// ...

const err = while (true) {
    const read = file.readStreaming(io, &.{&buffer}) catch |e| break e;

    var i: usize = 0;
    while (i < read) {
        const slice = buffer[i..event_size];
        const event = std.mem.bytesAsValue(linux.inotify_event, slice);
        i += event_size;
        log.debug("{any}", .{event});
        i += event.len;
        // ...
        _ = linux.inotify_rm_watch(self.inotify_fd, event.wd);
     }
};

This seemingly works on my machine with both zio and Io.Threaded, which feels unsurprising.

However, the devil is in the details:

  1. If I give the NONBLOCK flag to inotify_init1, the readStreaming returns some WOULDBLOCK type error. Does this mean that if the Io.Threaded threadpool has just one thread, the blocking call would freeze everything else? Well no, because Io.concurrent would return the ConcurrencyUnavailable error earlier. But can the readStreaming actually yield? Will zio always work with a “foreign” fd? Is Io.concurrent even the right mechanism for this, or should I spawn a thread?
  2. If I try to use a file reader (either streaming or positional), call takeStruct and discardShort, this only works with zio, not std, and only with NONBLOCK on the inotify_init1. In other cases (blocking zio or any std) the takeStruct just doesn’t return.
126

It works because on Io.Threaded, it uses just blocking read, and zio uses io_uring, which is also fine with the blocking fd.

It’s not universally correct, but unfortunately it can never be, because Io implementation might always need to have a file open in some way, or even not use syscalls at all for some mock implementation.

If you wanted it to be more correct, I’d open the fd in non-blocking mode, and then use Io.Batch. It will actually use poll + read on Io.Threaded, and it’s better if you use the epoll backend on zio for some reason.

Correct, once you have succeeded using io.concurrent on Io.Threaded, you have your own thread and can block it in whatever way you wish.

One thing to note, Io.Threaded will never yield, it uses blocking syscalls, or poll loops, it always blocks the thread.

On the other hand, zio and Io.Evented (in the future), will always yield during readStreaming, but with blocking fd, you could potentially freeze some implementation.

Zio on io_uring will always work with any fd. On the epoll/kqueue backend, it’s more complicated, bu you probably don’t need to care about this.

Given that this is a pollable fd we are talking about, I’d say io.concurrent and readStreaming is fine, but if you wanted to be absolutely sure it’s going to work with any implementation, you would need to spawn a thread use std.posix.system.read in a loop, and then maybe use Io.Queue to post events.

This is surprising to me and I’ll need to test it, I’d have expected it to work even through the streaming reader.

1 Like
127

Hey - nice work on the Io implementation.

I tried this out with our Datastar 0.16 web framework, and yeah, just works. The whole framework does some gnarly things with SSE + pubsub + timers + file watchers + queues. It gives Io a decent workout across the board.

The neat thing is that there are zero changes to any of the library code to go from threaded to coroutines. Just a build time option to trigger 1 line of code in the user’s app main() function, and everything works.

(Works = Linux, Mac, FreeBSD across all release modes)

It’s slightly faster than threaded on the test benchmarks, and significantly better latency / tail latency numbers. (Assuming you set executors to .auto and use multiple workers).

So have promoted that experiment branch to master, and made it a first class recommendation for building Datastar apps with the framework.

Happy Days.

13 Likes
128

Hi, I wanted to give it a try with the Io implementation, but I have an issue with they way the runtime is initialized. Is it necessary that the initialization allocates the Runtime struct? I require to hold the struct myself so I can mock out the Io implementation in tests. The struct being on heap makes this impossible for me.

To better illustrate what I mean I’ll show you start of my mocked io function:

    fn netLookup(
        ctx: ?*anyopaque,
        host: HostName,
        results: *Io.Queue(HostName.LookupResult),
        opts: HostName.LookupOptions,
    ) HostName.LookupError!void {
        const io_rt: @FieldType(TestCtx, "io_rt") = @ptrCast(@alignCast(ctx));
        const test_ctx: *TestCtx = @fieldParentPtr("io_rt", io_rt);

I can do this with std Io implementations, but not with zio. This is not possible to do if I do not hold the Runtime struct in my TestCtx. I also assume I can not just copy the Runtime because surely the init would not allocate it on heap if I could.

129

Yes, runtime needs known address from the start, it can’t be copied. I could have changed it to a different pattern that requires passing undefined Runtime ptr to Runtime.init, but that would make it more complex to use and easier to mess up.

However, I’m not sure why do you need to copy zio.Runtime for your mock. Why not just have:

const TestCtx = struct {
  parent_io: std.Io,
}

And then use *TestCtx as the userdata for your mock implementation.

130

Because in what I am testing I call io.netLookup where io is provided by the runtime, then I copy the provided io and just replace individual functions with my own implementation. I can not pass different userdata without implementing the full io interface in my TestCtx, which I would prefer not doing, even if it was just delegating to another implementation.

1 Like
131

Oh, I see, in that case: runtime: add initStatic for embedded/stack-allocated Runtime (#404) · lalinsky/zio@cb5763e · GitHub

I’ll probably change the naming later, use create/destroy for the default case, and allow init/deinit, to be more consistent with the mainstream conventions, but for now I want to keep it backwards-compatible.

132

Thanks! Much appreciated. Will let know how my try-out goes later.

133

So I have tried it and didn’t get results that I was hoping for. For context I have a little Zig resolver shared library and wanted to get rid of additional threads. I tried test hitting local system resolver. I only use .netLookup and Io.Select in my program. The zio implementation with max_thread=1 was at least 2x as slow as single-threaded Io.Threaded. I had to raise it to around max_thread=12 to match the single threaded speed. There might be some issues with how I test it or with my program, but I guess I will stick with Io.Threaded for now because it works fine for me. I will try again later when I have different workload to test it on.

The issue with my test is probably that I am hitting system resolver with same domain over and over, which means it is cached and there is not much waiting for IO. The results would probably be different in more realistic scenario though.

134

That makes total sense. When using getaddrinfo, it would be hard to beat Io.Threaded, which can just directly call it.

On macOS and Windows, I use the native async resolvers, so those should work better, but probably still slower than just calling GAI.

Btw, writing a custom DNS resolver for Linux is on my short-term TODO list, but I’m taking the time with the design, because I want it really well done in terms of caching.

1 Like
135

Do you mean whole new program? I am wondering if just doing in zio’s netLookup what Io.Threaded does would improve zio’s lookup dramatically for linux. I don’t quite understand why netLookup is a io vtable function and not a function that just takes any io. It seems to me like that logic should be reusable… I think I will try doing that at some point next week.

1 Like
136

No, internal implementation of netLookup. Completely transparent to the user. Just implemented without depending on the OS/libc resolver. On Linux/io_uring it can be done completely async. And with good caching, it possibly means 0 syscalls for repeated lookups.

1 Like
137

I’ve released version 0.13 with the async DNS resolver mentioned in the posts above. It’s pretty fast, beating any other solution I’ve tried. And since DNS resolution was the last thing that required the auxiliary thread pool on io_uring, I was also motivated to support -fsingle-threaded. Both the DNS resolver and single-threaded mode are only recommended to use on Linux with the io_uring backend. On other systems, using the thread pool is better.

EDIT: actually, Windows with IOCP backend is fine as single-threaded as well, file ops are async, DNS is async, so it should be ok

9 Likes
138

Wrote a post about timeouts in zio. Explains zio.AutoCancel, which is the most general timeout mechanism in the library. This approach is something that can’t be expressed in std.Io directly, so the custom API still matters.

10 Likes
139

I’ve released another version with what I’d call “last mile” changes. The key changes are:

  • Support for sendfile-like operations for sending file over network sockets. These are currently emulated, but they still do better than the naive loop, because it runs read and write concurrently. Platform-specific variants on Linux, Windows and FreeBSD will be done later. Those are the only OSes that do support async sendfile. This is unfortunately not wired via std.Io because std.Io.net.Stream.Writer doesn’t support it, it has an unimplemented stub that does not call the vtable. I don’t want to overload the guys with my PRs, so once some of them get merged, I’ll open a PR to fix this in std.Io.

  • Support for debug_io, which you can expose as std_options_debug_io and it will make std.debug.print and std.log calls async.

  • Support for resolve_beneath. This is a security feature, so unlike stdlib, if you use the flag and the system doesn’t support it, it will fail. This behavior is controllable with the resolve_beneath_mode build option.

  • Support for file locking. I’ve been avoiding this, because there is no good async way of doing it, but I’ve settled on the non-blocking OS calls with sleep loop.

  • After some fixes, I’ve re-enabled task migration, so for example if unlock mutex, the task waiting on the mutex will get scheduled on the same thread, avoiding cross-thread wake up, which is like 100x slower. This is controllable at runtime using allow_task_migration, defaults to true.

12 Likes

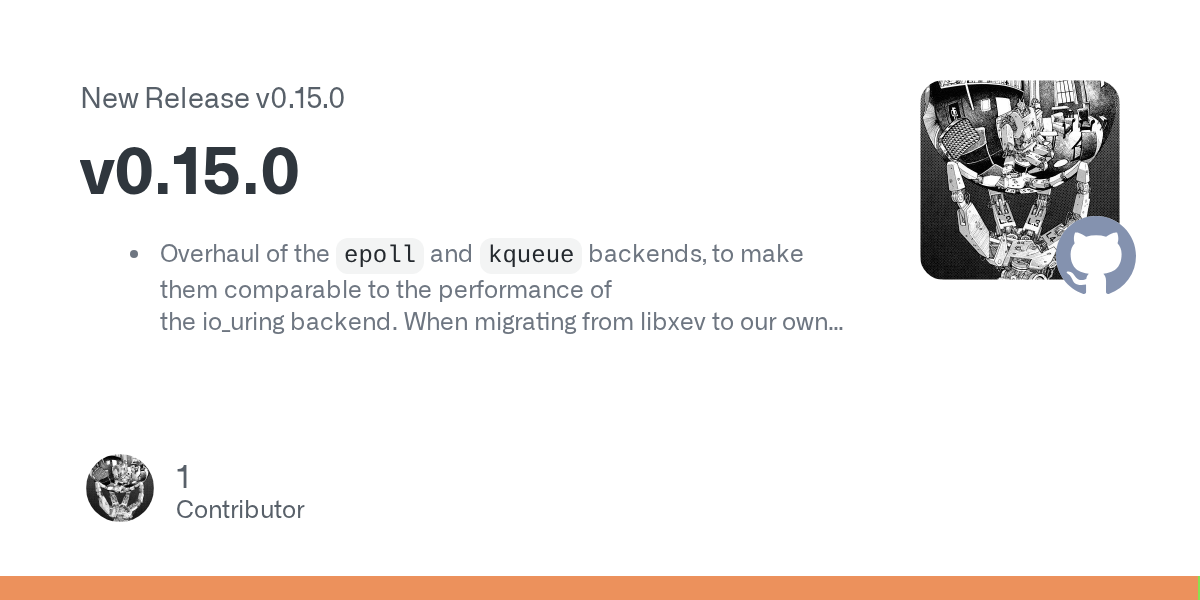

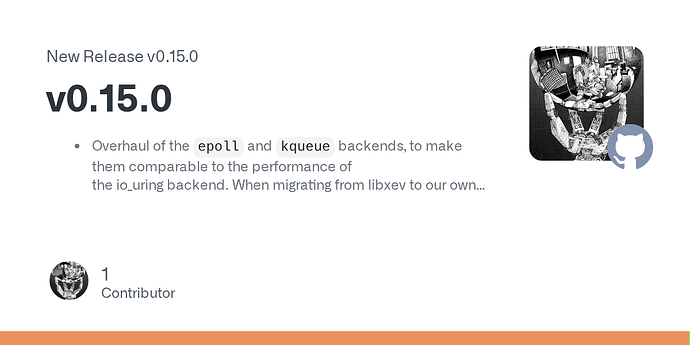

140

Another release, this one makes me happy because the epoll/kqueue backends got really competitive on performance, the epoll backend even beating io_uring in some benchmarks. Previously, these backends were working correctly, but not exactly fast. That was a left-over from the time I was using libxev. Plus, there are improvements to sendfile, and many other smaller changes/fixes.

  • Overhaul of the epoll and kqueue backends, to make them comparable to the performance of the io_uring backend. When migrating from libxev to our own event loop, I decided to use
    a similar approach for both backends, which really goes against the nature of these APIs.
    With this new rewrite, both backends keep fds registered in the kernel, so readiness is
    always available. This results in far fewer syscalls, and overall better performance.
    One side effect is that now tasks that were running on executor A can be moved to
    executor B, if the event loop B is where the fd is registered.

  • Improved performance of net.Stream.Writer.sendFile on all platforms. There is now
    a native zero-copy implementation for Windows using TransmitFile, and the generic
    fallback now uses the entire reader/writer buffers, so it’s always faster than the
    read/write loop fallback implemented in std.Io.Writer.

  • Added File.stdReader/File.stdWriter to wrap a zio-opened file as the concrete
    std.Io.File.Reader/std.Io.File.Writer types, so it works with std.Io APIs that
    require them (like std.Io.Writer.sendFileAll).

  • Implemented wall-clock timers, so you can now sleep/timeout using the real-time clock and be
    woken up exactly on time, even if the clock is adjusted. This is natively supported on Linux,
    but needs more careful coordination on other platforms.

  • Added support for all clocks that std.Io supports (real, boot, awake, and the cpu_process/cpu_thread CPU-time clocks), as well as querying their resolution.

  • Changed how stdin/stdout/stderr are handled on Windows, to make sure we can work with these without blocking the event loop, since they are not open as OVERLAPPED handles.

  • Changed the io_uring backend from futex-based wake ups to eventfd, which works much more reliably. The previous futex approach introduced wake up latency that I could not explain.

  • Error code ETIMEDOUT is now mapped to error.ConnectionTimedOut for send/recv operations. We are not using kernel-level socket timeouts, but it seems that these error codes can still happen.

  • New TaskLocal API for storing custom task-local data.

  • Added custom random and randomSecure APIs for generating random numbers,
    to reduce dependency on std.Io.Threaded.

  • Fixed handling of Unix socket addresses containing null bytes.

  • Fixed race in cross-thread handling of AcceptEx calls on Windows.

  • Fixed shutdown sequence to properly stop the thread pool before closing the event loop.

  • Fixed memory leak that happens after spawning blocking tasks on the thread pool.

8 Likes
